LCD Static Horizontal Black/White for COPs

LCD Static Horizontal Black/White for COPs

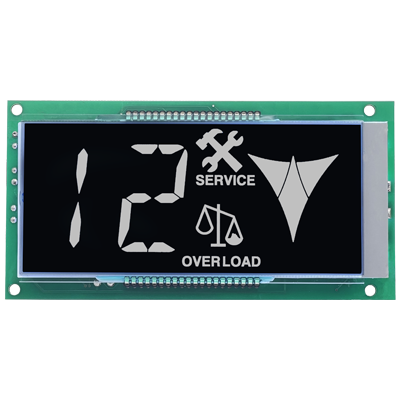

Liquid Crystal Display(LCD Screen) for Car operating panels with 2-colour graphing designs for elevators. An easy-to-install screen with perfect contrast and intensity featuring Double Number Indicators for the floors, Moving Direction Arrow and two states, Service and Overload. In the state of Overload the onboard buzzer operates simultaneously with the corresponding Indication until the state released. Find out the best combination of colours regarding yout project. LCD Screen can be Blue(background) – White(digits) or Black(background)-White(digits).

Model

INTD0511

Power Supply

12-24V AC/DC

Indication

Floor Position Up to 32 Floors, Moving Direction Arrows, Overload, Service

Inputs

ABCDE, Arrows, Overload, Service

Compatible Protocols

One wire per floor
Standard binary up to 32 floors
Binary for KONE up to 32 floors
AUTINOR CREP00 / CREP01
THYSSEN code
MEA NG12 code
Magnet detector

Lighting Eming Color

Black/White

Max Number of Floors

32

Dimensions

PCB 115 x 50 mm
LCD 114 x 64 mm
