Lift Floor Announcement and Music
Code: INTD0612

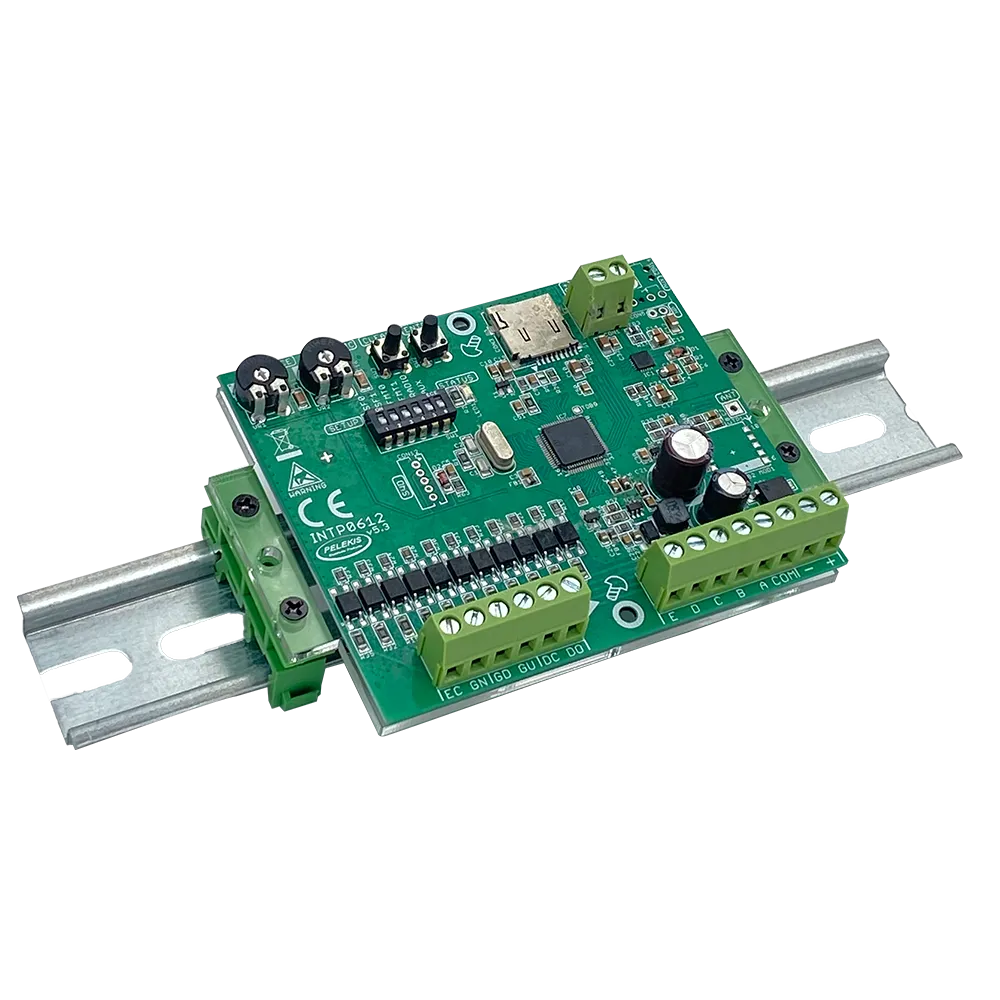

The INTD0612 is a floor announcement device for elevators that uses WAV files stored on a microSD card.
Notes
The INTD0612 is a floor announcement device for elevators that uses WAV files stored on a microSD card. It announces the approaching floor, as well as the elevator's direction (ascending or descending), door status (opening or closing), and overload status (if exceeded).
Features:
- Announces the approaching floor, direction, door status, and overload status
- Supports custom WAV files for announcements and music
- Provides a more professional and modern feel to your elevator
- Allows for customized announcements and music
- Music pauses during elevator parking and resumes from where it stopped
- Easy installation with DIN rail mounting
| Code | INTD0612 |
|---|---|
| Mechanical | |
| Installation Place | At the Lift Controller |
| Dimensions | 145 × 190 × 50 mm (W × D × H) |
| Weight | 170 g |
| Electrical | |
| Rated Power Consumption | 3.5W Peak |
| Inputs | Group A: ABCDE Group B: GD(↓), GU(↑), DO(Door Open), DC(Door Close) Extra: GN(Gong) , E(ECO) |
| Outputs | Speaker 4 – 8 Ohm/ >10W |
| Other | |
| Storage | Type: microSD card Supported Sizes: 1,2,3,16 and 32GB Disk Format: Windows (FAT32) Supported classes: 2,4,6,10 |
| Supported Formats | WAV Files |
| Additional Features | Supported application Voice Manager for customization mode of the device. Compatibility : Windows XP/7/8/10 |
| Mount Type | DIN Rail |
| Operation Temperature | 0–80 °C |
Documents
- INTD0612_
v5.3_ ENGi Language: ENFormat: PDFSize: 851 KB
- INTD0612_
v5.3_ GR Language: ΕΛFormat: PDFSize: 888 KB
| Document | Language | Format | Size |
|---|---|---|---|
| INTD0612_ | EN | 851 KB | |
| INTD0612_ | ΕΛ | 888 KB |
