RedPhone Autodialer
Code: INTD0901

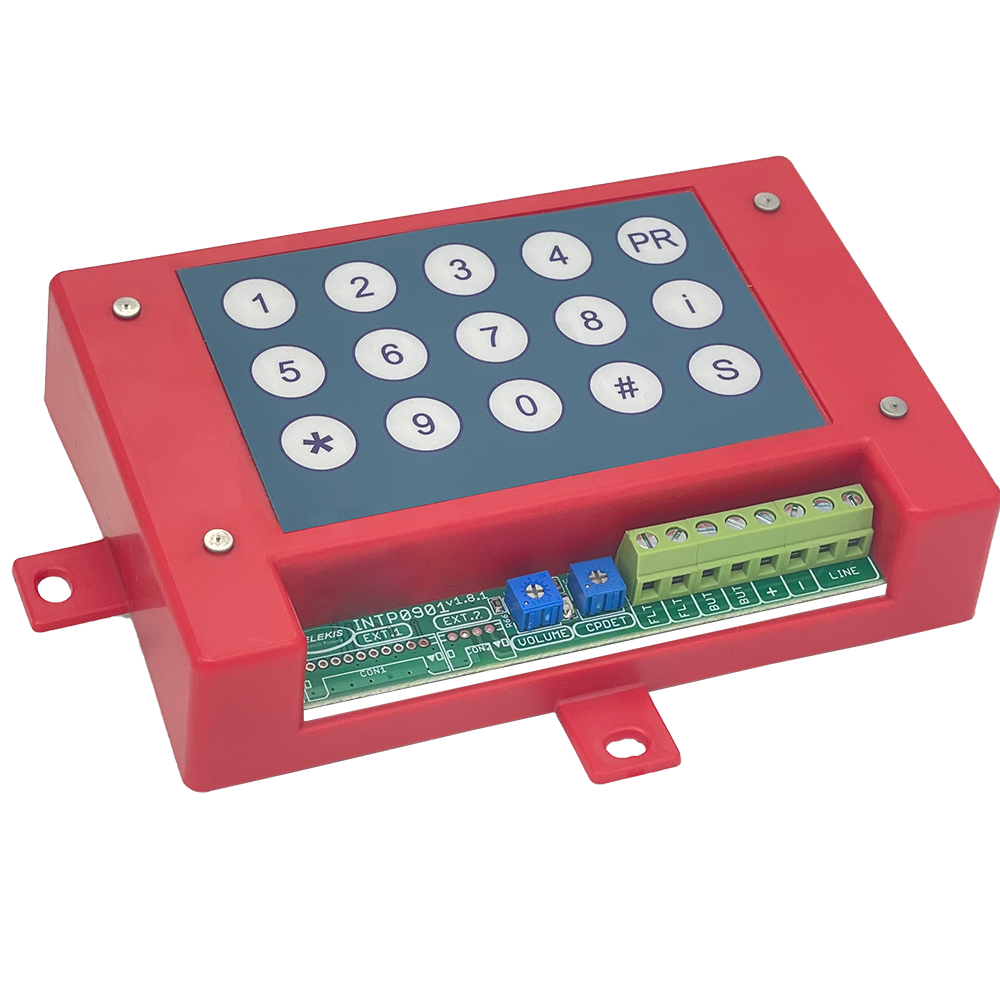

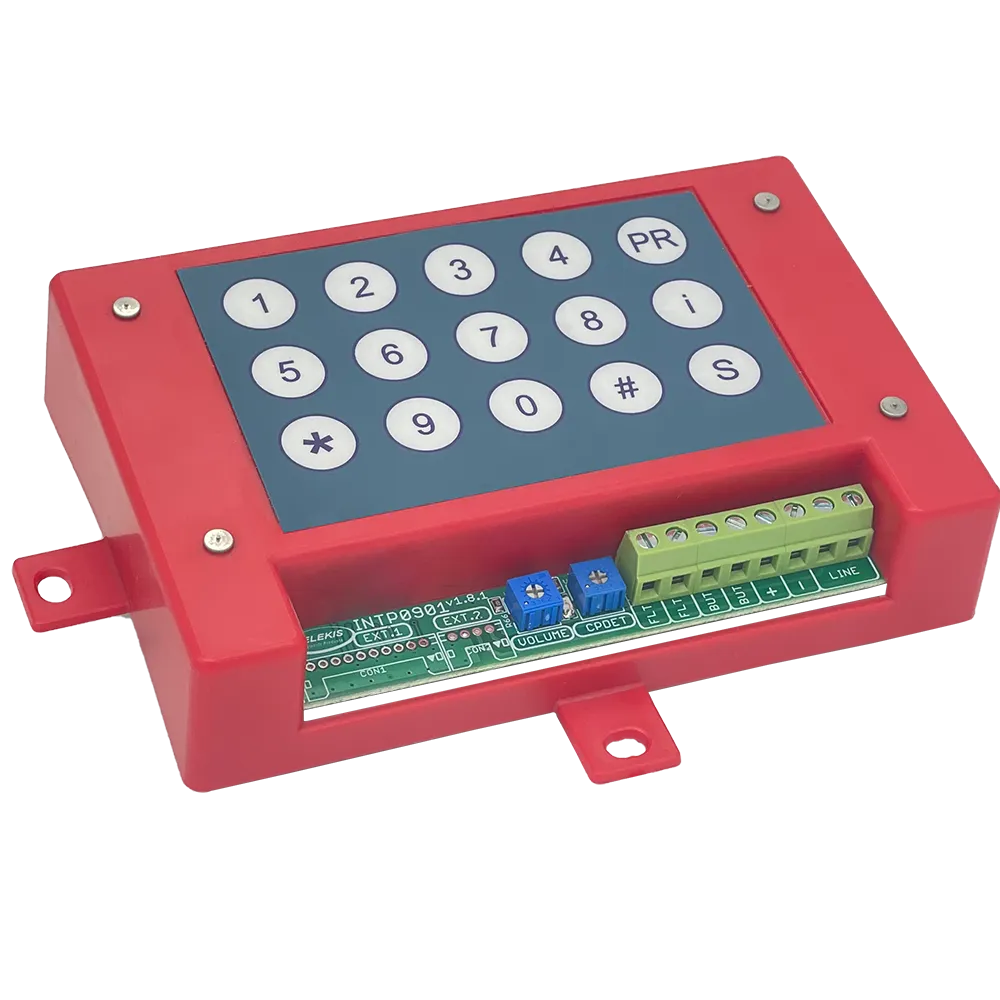

RedPhone is an advanced cabin emergency phone system autodialer, offering ‘hands-free’ functionality and on-board memory for storing four preset telephone numbers.
Notes
RedPhone is an advanced cabin emergency phone system autodialer, offering ‘hands-free’ functionality and on-board memory for storing four preset telephone numbers. Its sleek metal facade is designed for flush mounting inside the elevator car, featuring engraved instructions available in multiple languages. This product fully adheres to the latest European Safety Elevator Directive, EN81-28:2022. For optimal operation, RedPhone can be seamlessly combined with our GSM Gateway (INTD0909) when landline is not available.
| Code | INTD0901 |
|---|---|
| Mechanical | |
| Installation Place | Above the Car Lift, Behind COP |
| Dimensions | 130 × 85 × 28 mm |
| Weight | 225 g |
| Electrical | |
| Power Supply | 12V/24V |
| Outputs | Dry Contacts (OD) Pictograms |
| Inputs | Dry Contact input for activation "NOT CALL FILTER" Priority setting between microphone and speaker Telephone line input from the provider or from GSM terminal. |
| Battery | No |
| Other | |
| Emergency Call Numbers | Up to 4 Telephone Numbers |
| Extra Features | Call in progress detection (Busy/Not answer) Hands free micro trimming function Extended user command set |
| Case Material | Plastic |
| Mount Type | Flush Mount |
Documents
- RED_
PHONE_ PWR_ EN Language: ENFormat: PDFSize: 1.4 MB
- RED_
PHONE_ PWR_ GR1 Language: ΕΛFormat: PDFSize: 1.4 MB
| Document | Language | Format | Size |
|---|---|---|---|
| RED_ | EN | 1.4 MB | |
| RED_ | ΕΛ | 1.4 MB |
