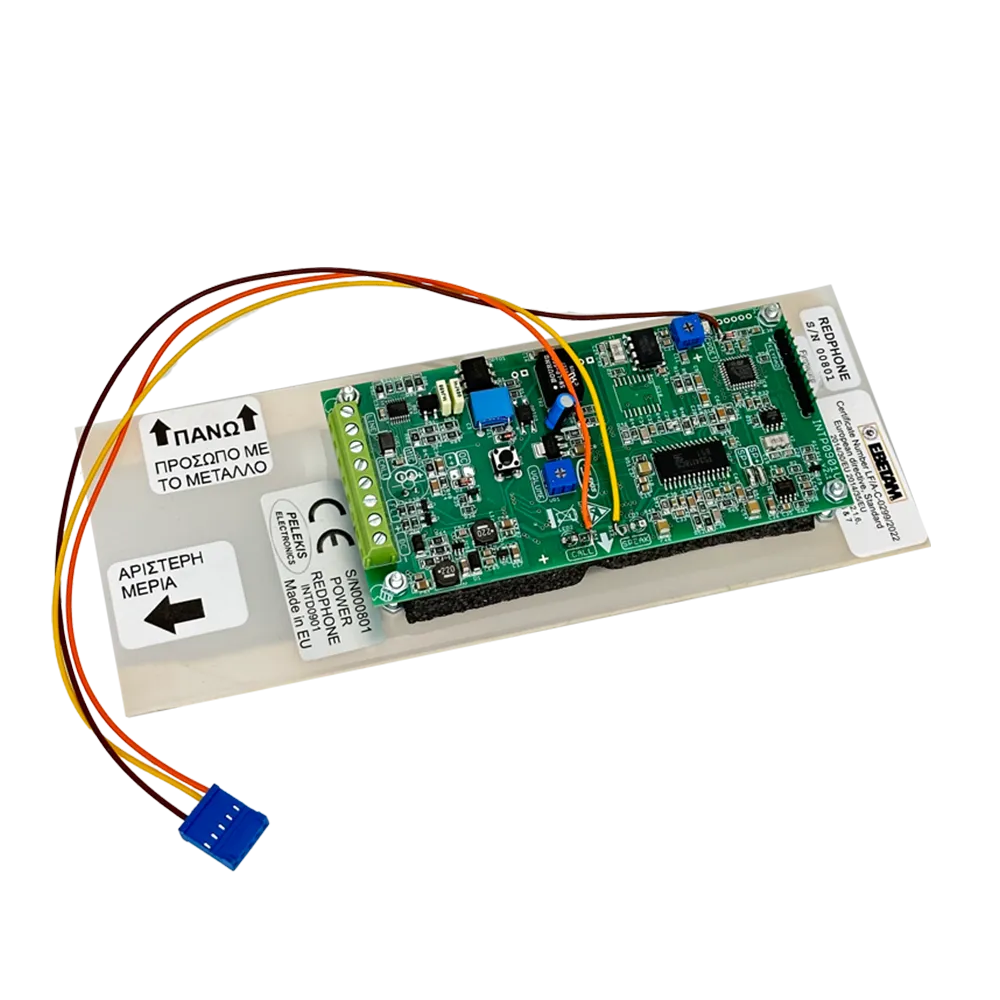

RedPhone Autodialer for OTIS Gen2 COP
RedPhone Autodialer is an advanced cabin emergency phone system designed for direct installation on OTIS Gen2 Control Operating Panels (COPs). It connects directly to the OTIS PCB via the appropriate connector type for Pictograms, offering convenient ‘hands-free’ functionality and onboard memory for storing up to four preset telephone numbers.

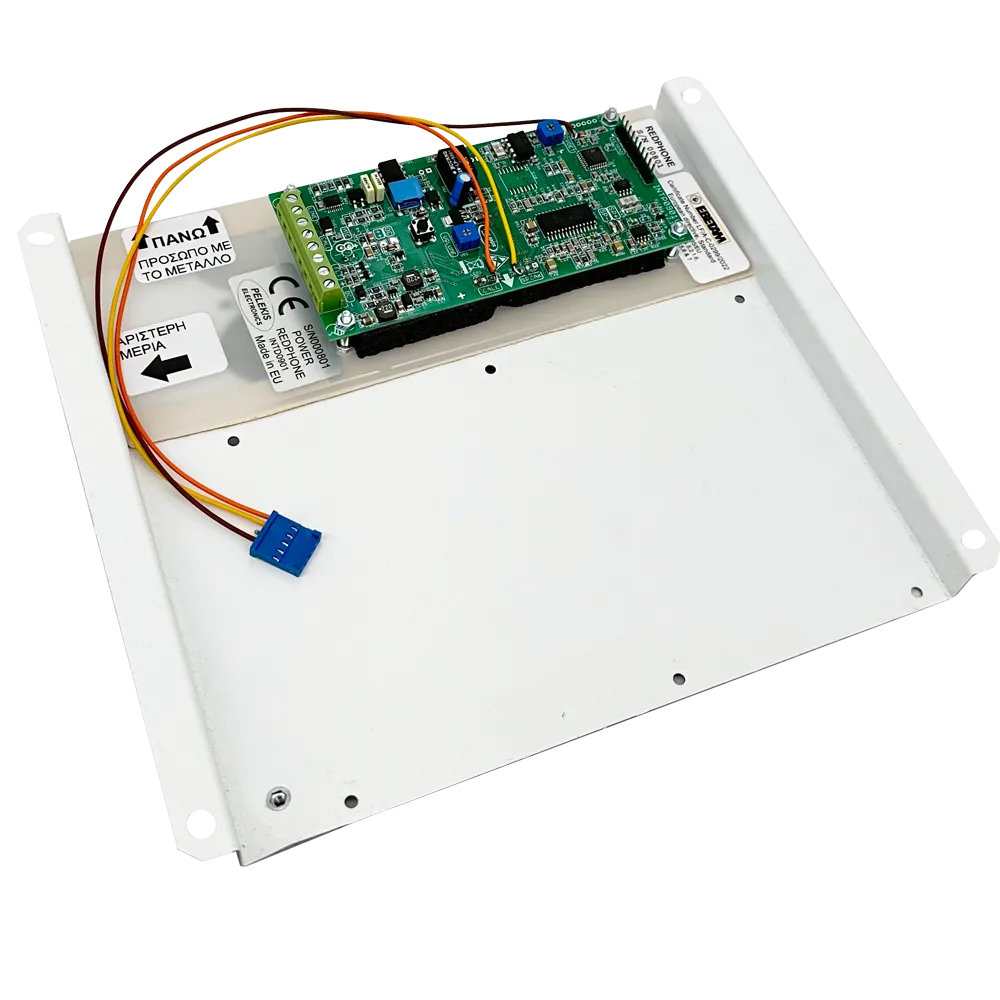

Installation is straightforward: simply adhere the Plexiglass base to the metal bridge behind the COPs, following the provided instructions, and the microphone and loudspeaker fit perfectly. This product fully complies with the latest European Safety Elevator Directive, EN 81-28:2022.
For optimal operation, the RedPhone can be seamlessly integrated with our GSM Gateway (INTD0909) when a landline is unavailable.
| Model | INTD0901ROTIS |
|---|---|
| Power Supply | 12V/24V |
| Emergency Call Numbers | Up to 4 Telephone Numbers |
| Outputs | Dry Contacts (OD) |
| Inputs | Dry Contact input for activation "NOT CALL FILTER" |
| Installation Place | Above the Car Lift, Behind COP |
| Extra Features | Call in progress detection (Busy/Not answer) |
| Battery | No |
| Case Material | Plastic |
| Mount Type | Flush Mount |
| Dimensions | 130 x 85 x 28mm |
| Weight | 225g |
