OTIS Gen2 LED Lighting Replacement Kit

OTIS Gen2 LED Lighting Replacement Kit

Code: INTD0805

The Kit INTDD0805 is developed to upgrade the conventional light bulbs in the OTIS Gen2 elevator cabin's COP (Car Operating Panel) with advanced LED lighting technology.

Notes

The Kit INTDD0805 is developed to upgrade the conventional light bulbs in the OTIS Gen2 elevator cabin's COP (Car Operating Panel) with advanced LED lighting technology. This kit is fully prewired, featuring Plug n' Play connectors for effortless installation.

The kit includes:

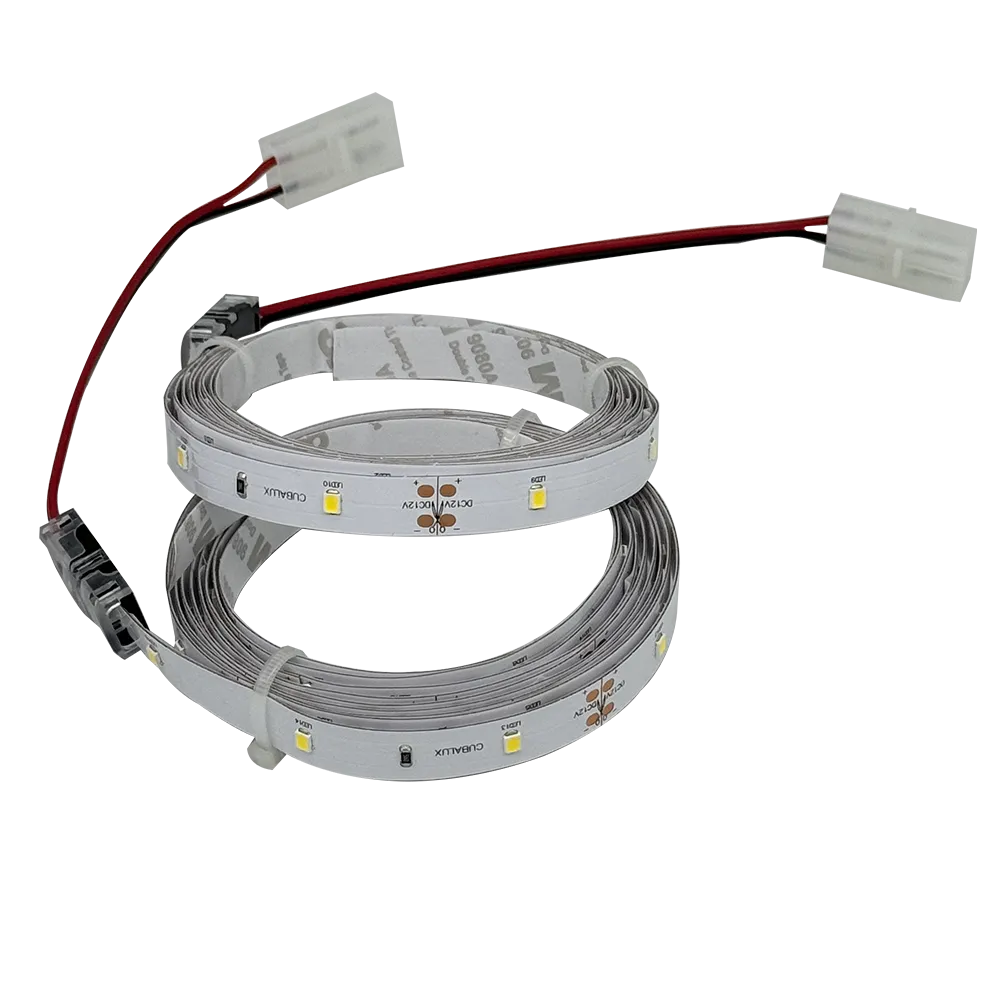

  • 2x LED Strips (1.80m): These high-efficiency strips provide the main lighting for the cabin.

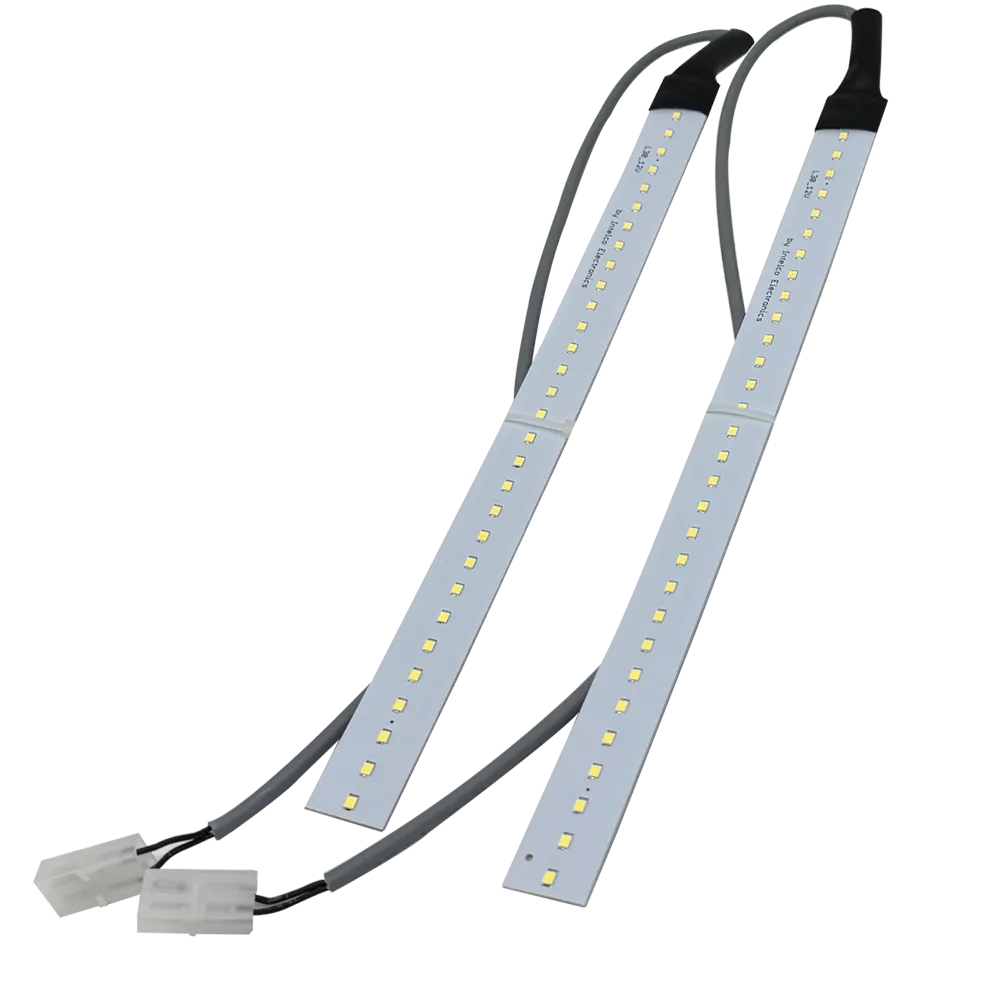

  • 2x LED PCBs (30cm, 3W): These serve as emergency lighting during power outages.

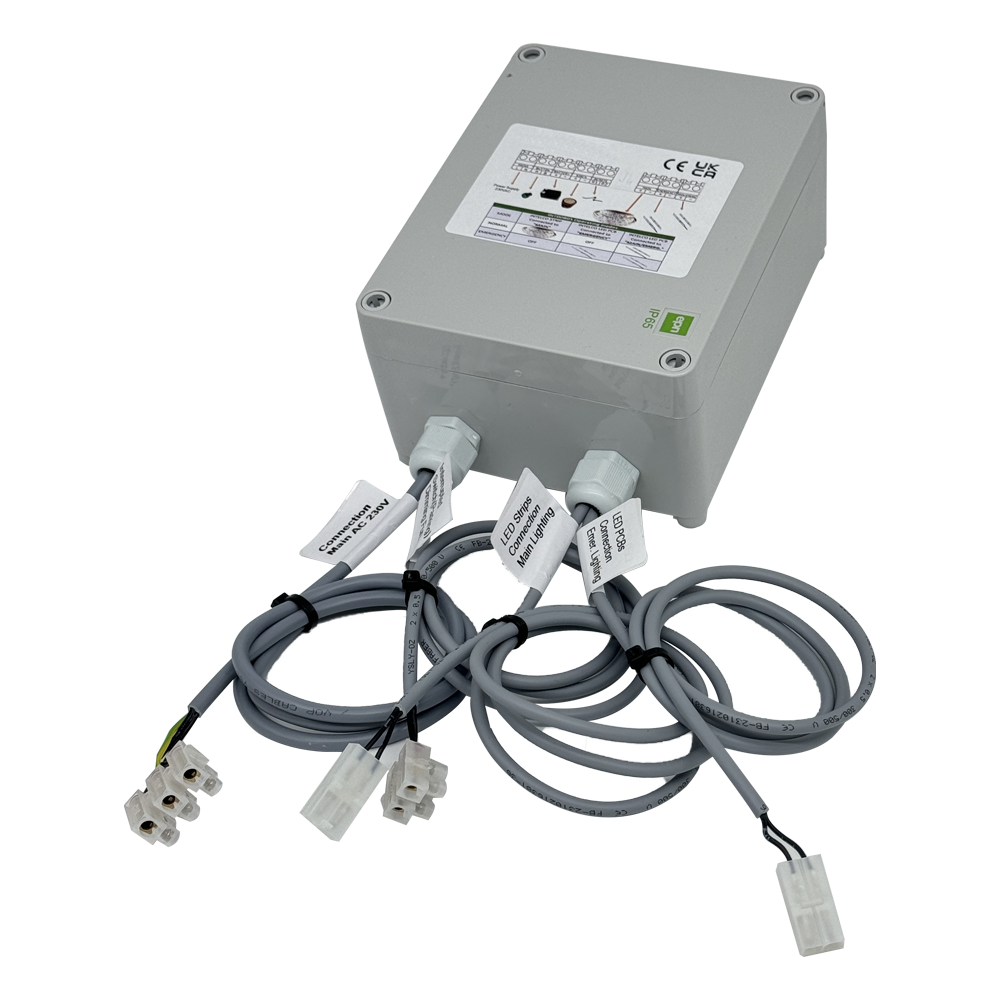

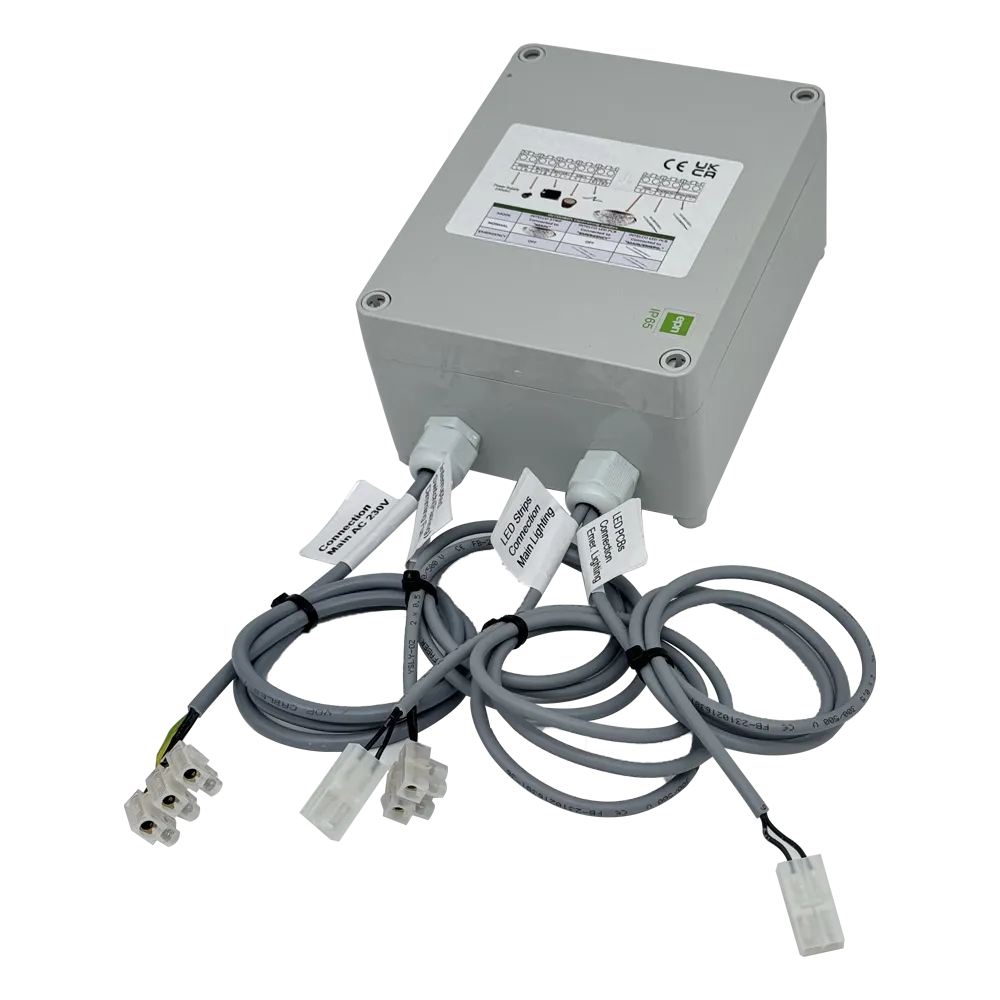

  • The Main Controller: This is the main power supply for the kit and is equipped with a battery and every cable preconnected.

With the INTDD0805, you also gain the benefit of dimming functionality for the main lighting when the elevator enters the parking state.

Key Features:

  • Safety and Protection: The main controller is designed to safeguard against short circuits, overcharge, and discharge.
  • Energy Efficiency: Each LED strip delivers 7.2W/m, ensuring high efficiency and performance.
  • Emergency Power: The included 12V / 1.3 Ah battery, supported by a smart charging system, powers the 30cm, 3W LED PCBs for up to 3 hours during emergencies.
  • Time-Saving Installation: The kit's pre-wired design significantly reduces installation time.
