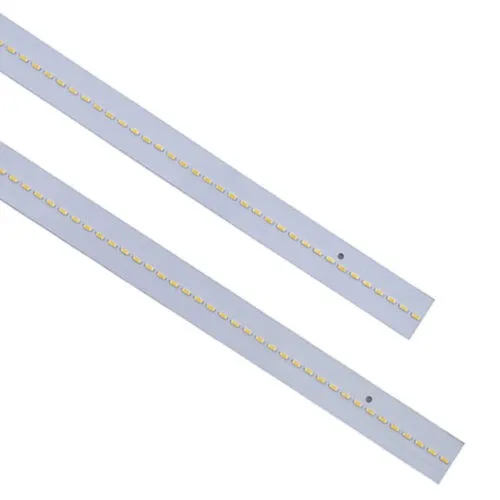

LED PCB Linear Module 56cm 220V 10W

LED PCB replacement for ceiling luminaires, offering high reliability and easy installation.
Notes
LED PCB replacement for ceiling luminaires, offering high reliability and easy installation. Featuring a thin and efficient luminaire design, the 560 x 20mm 10W model ensures optimal illumination.
- Ideal for Elevator, Offices, Home appliances.
- Easy installation.
- Energy saving up to 70%.
- Aluminum board for better temperature dissipation.
- Diffused light 120 °
- No IR and UV radiation.
- Mercury free.
- Rated Lifetime: 50.000 hrs
- Length LED PCB: 560 mm
- Width LED PCB: 20 mm
| Electrical | |
|---|---|
| Rated Power Consumption | 10 W |
| Operating Voltage | 210–240 V |
| Operating Frequency | 50–60 Hz |
| Optical | |
| Rated Efficacy | 165 lm/W |
| Beam Angle | 120° |
| Number of LEDs | 82 |
| Kelvin | 2700K, 3000K, 4000K, 6000K |
| Rated luminous flux (6000K) | 1450lm |
| Other | |
| Lamp Equivalent | 18W |
| CRI | >90 |
| Power Factor | 0.99 |
Documents
No manual yet, ask us.
