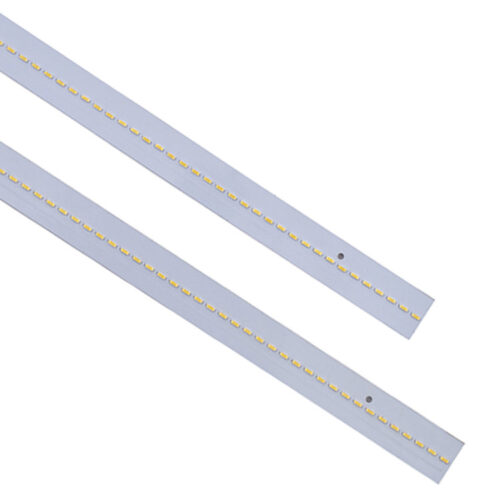

LED PCB Linear Module 48cm 220V 10W
LED PCB replacement for ceiling luminaires, offering high reliability and easy installation. Featuring a thin and efficient luminaire design, the 480 x 20mm 10W model ensures optimal illumination.
- Ideal for Elevator, Offices, Home appliances.
- Easy installation.
- Energy saving up to 70%.
- Aluminum board for better temperature dissipation.
- Diffused light 120 °
- No IR and UV radiation.
- Mercury free.
- Rated Lifetime: 50.000 hrs
- Length LED PCB: 480 mm
- Width LED PCB: 25 mm
| Rated Power Consumption | 10W |
|---|---|
| Operating Voltage | 210…240V |
| Lamp Equivalent | 18W |
| Rated Efficacy | 165lm/W |
| CRI | >90 |
| Beam Angle | 120° |
| Number of LEDs | 82 |
| Kelvin | 2700K, 3000K, 4000K, 6000K |
| Nominal luminous flux (6000K) | 1450lm |
| Rated luminous flux (6000K) | 1450lm |
| Operating Frequency | 50…60 Hz |
| Power Factor | 0.99 |
