LED Downlight Surface Mounted Metal 230VAC
Code: INTD6740_B

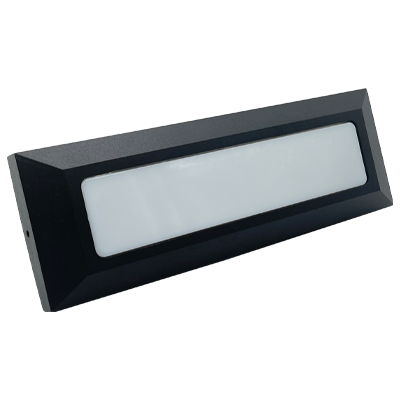

INTD6740 is a LED Lighting Downlight with a robust metal housing, ideal for surface mounting in any New or Modernization Project.
Notes
INTD6740 is a LED Lighting Downlight with a robust metal housing, ideal for surface mounting in any New or Modernization Project. The fine aesthetics, high quality LED inside and robust structure create it the best solution for any Elevator Lighting Application, Car and Shaft Lighting, but also INTD6740 is ideal for Home application, staircases, corridors and halls. Connecting 230VAC as power supply INTD6737 offers an extremely high quality lighting to the site.
Excellent lighting quality, fine aesthetics and robust metal structure.
| Code | INTD6740_B |
|---|---|
| Mechanical | |
| Installation Place | Above the Car Lift, At the Car Lift, At the Shaft |
| Case Color | Black, Industrial Grey, White |
| Dimensions | 230 × 80 × 25 mm (H × W × D) |
| Weight | 280 g |
| Electrical | |
| Power Supply | 230 V AC |
| Rated Power Consumption | 6 W |
| Battery | No |
| Optical | |
| Rated Efficacy | 165 lm/W |
| Beam Angle | 120° |
| Kelvin | 2700K, 3000K, 4000K, 6000K |
| Other | |
| Mount Type | Surface Mount |
| Case Material | Steel |
| Operation Temperature | 0–80 °C |
Documents
No manual yet, ask us.
