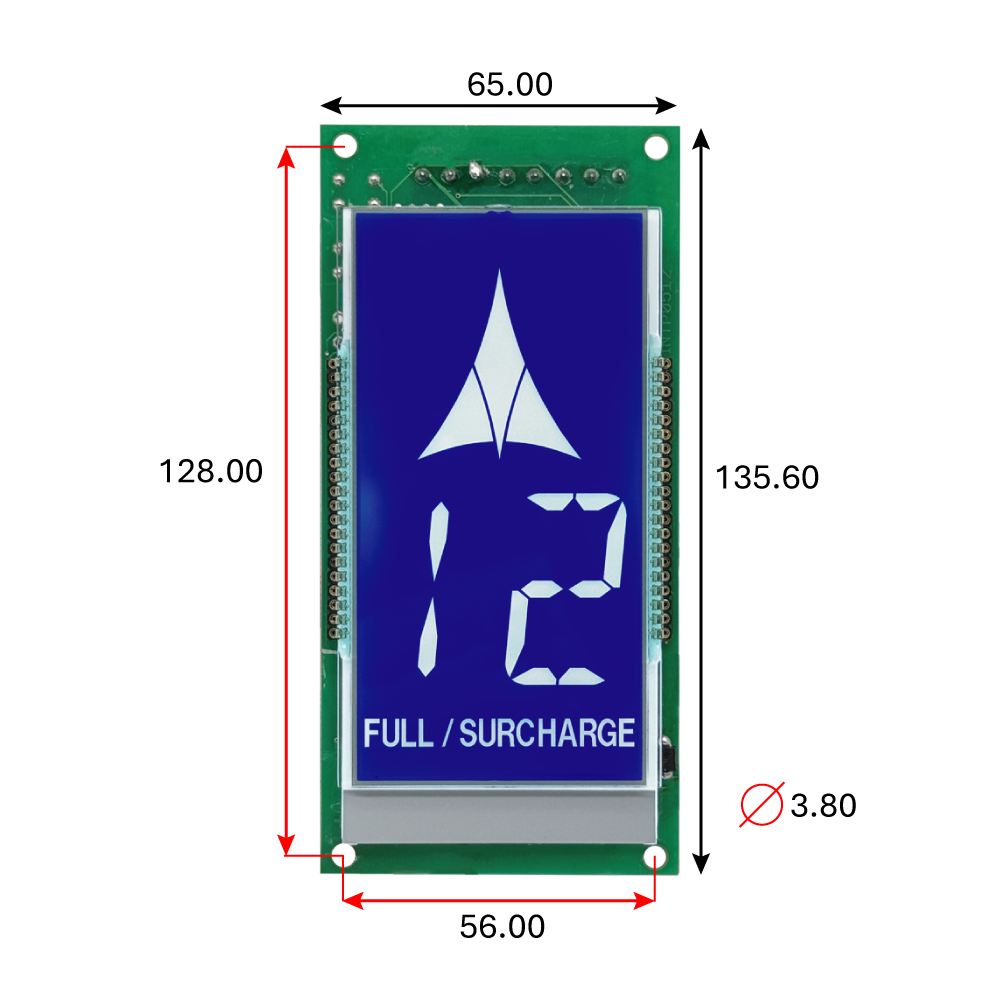

LCD Static Vertical Blue/White for COPs/LOPs

Code: INTD0512
Liquid Crystal Display(LCD Screen) both for Car Operating Panels and Landing Operating Panels with 2-colour graphing designs for elevators.
Notes
Liquid Crystal Display(LCD Screen) both for Car Operating Panels and Landing Operating Panels with 2-colour graphing designs for elevators. An easy-to-install screen with perfect contrast and intensity featuring Double Number Indicators for the floors, Moving Direction Arrow and two states, Service and Overload. In the state of Overload the onboard buzzer operates simultaneously with the corresponding Indication until the state released. Find out the best combination of colours regarding yout project. LCD Screen can be Blue(background) - White(digits).
| Code | INTD0512 |
|---|---|
| Electrical | |
| Power Supply | 12–24 V AC/DC |
| Inputs | ABCDE, Arrows, Overload, Service |
| Other | |
| Indication | Floor Position Up to 32 Floors, Moving Direction Arrows, Overload, Service |
| Compatible Protocols | One wire per floor Standard binary up to 32 floors Binary for KONE up to 32 floors AUTINOR CREP00 / CREP01 THYSSEN code MEA NG12 code Magnet detector |
| Lighting Eming Color | Blue/White |
| Max Number of Floors | 32 |
Documents
- INTD0512_
EN_ RM_ v1.00 Language: MultilingualFormat: PDFSize: 659 KB
| Document | Language | Format | Size |
|---|---|---|---|
| INTD0512_ | Multilingual | 659 KB |
