LCD Static Vertical Black/White for LOPs
Liquid Crystal Display(LCD Screen) for Landing Operating Panels with 2-color graphing designs for elevators.
Notes

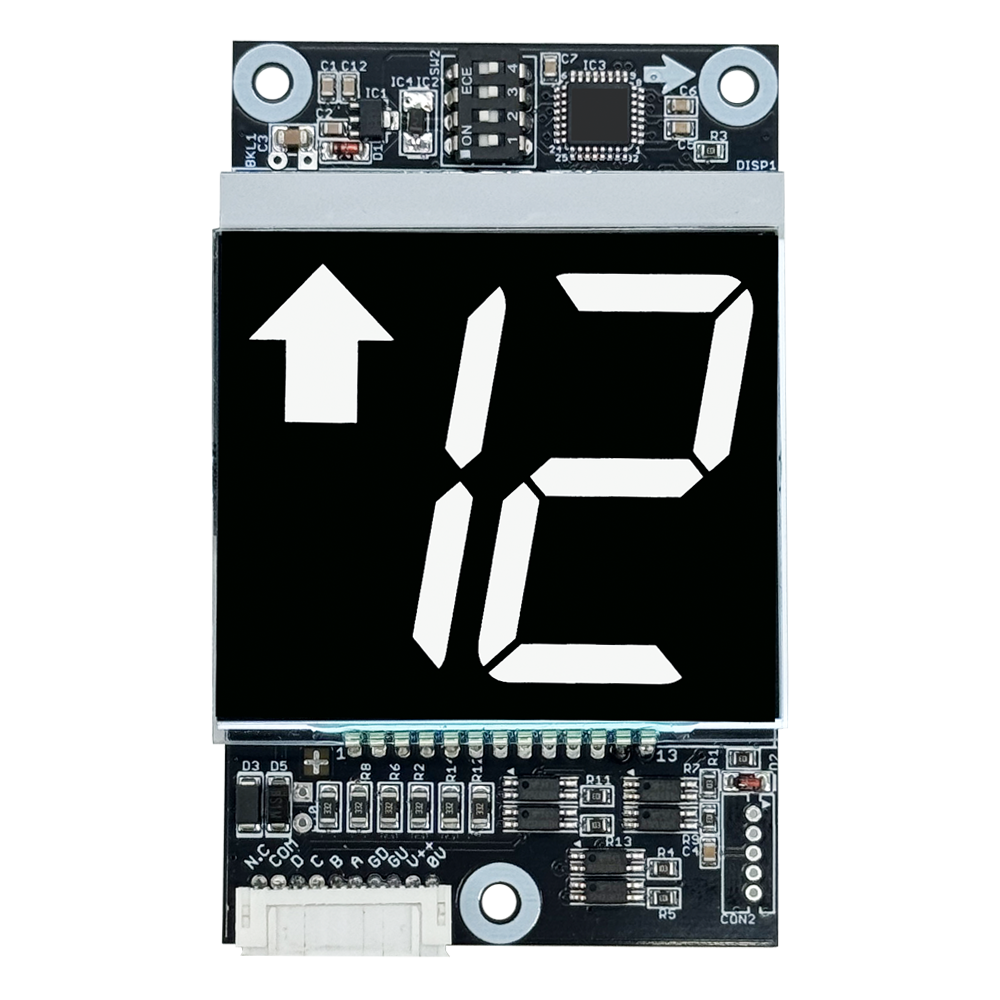

Liquid Crystal Display(LCD Screen) for Landing Operating Panels with 2-color graphing designs for elevators. An easy-to-install screen with perfect contrast and intensity featuring Double Number Indicators for the floors and Moving Direction Arrow. Find out the best combination of colors regarding your project. LCD Screen can be Blue(background) - White(digits) or Black(background)-White(digits).
| Mechanical | |
|---|---|

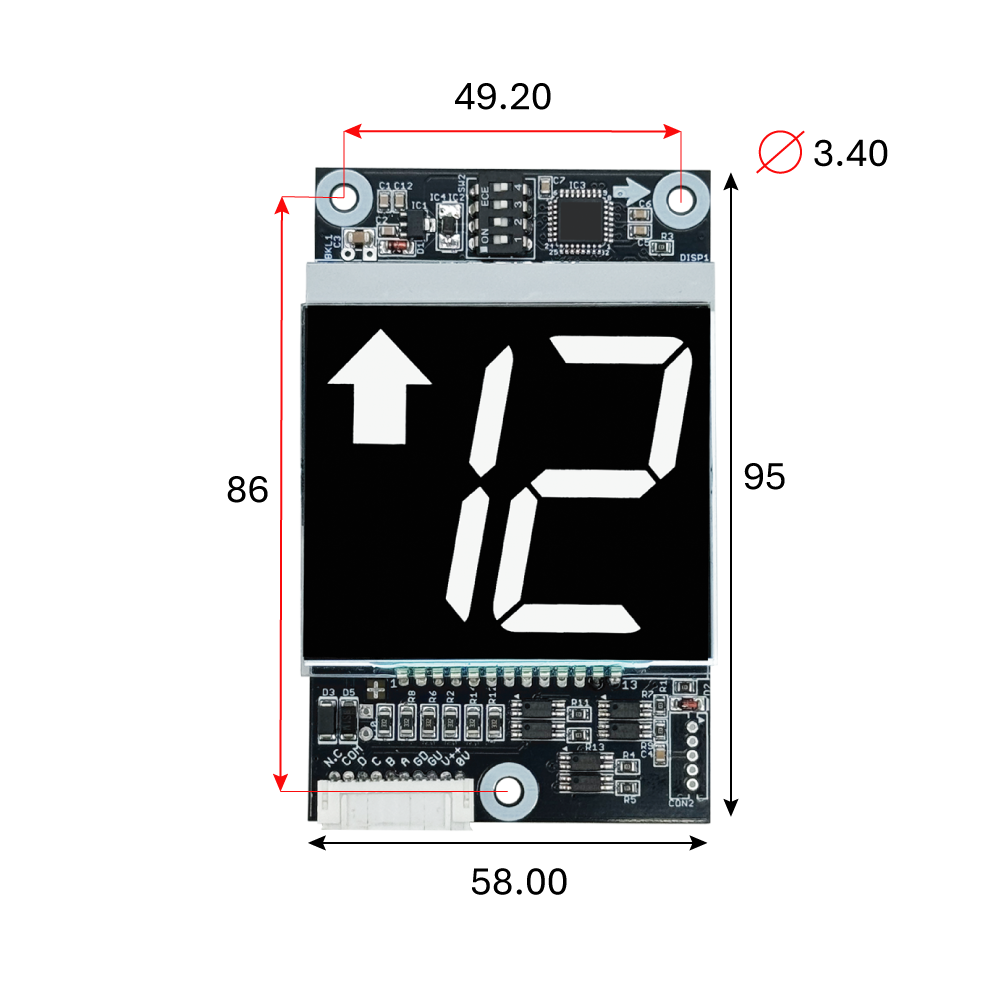

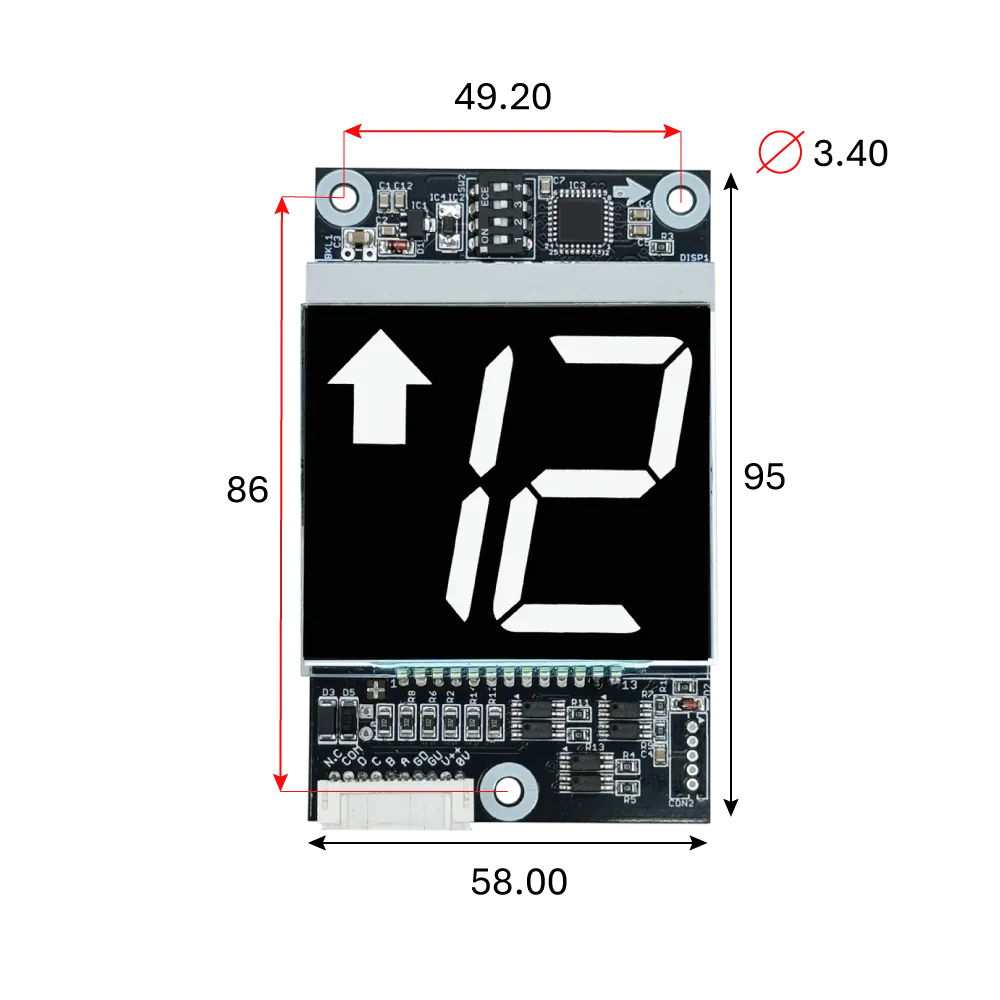

| Dimensions | PCB 95 x 58 mm LCD 59 x 51.50 mm |
| Electrical | |
| Power Supply | 12–24 V AC/DC |
| Inputs | ABCDE, Arrows |
| Other | |
| Indication | Floor Postion up to 19 Floors, Moving Direction Arrows |
| Compatible Protocols | One wire per floor Standard binary ABCD Binary KONE ABCD AUTINOR CREP00 / CREP01 THYSSEN code MEA NG12 code Magnet detector |
| Lighting Eming Color | Black/White |
| Max Number of Floors | 19 |
Documents
- INTD0516_
GR_ RM_ v1.0 Language: MultilingualFormat: PDFSize: 654 KB
| Document | Language | Format | Size |
|---|---|---|---|
| INTD0516_ | Multilingual | 654 KB |
