ITAD6359- Display + Arrows ABCD Indication for LOPs
Code: ITAD6359

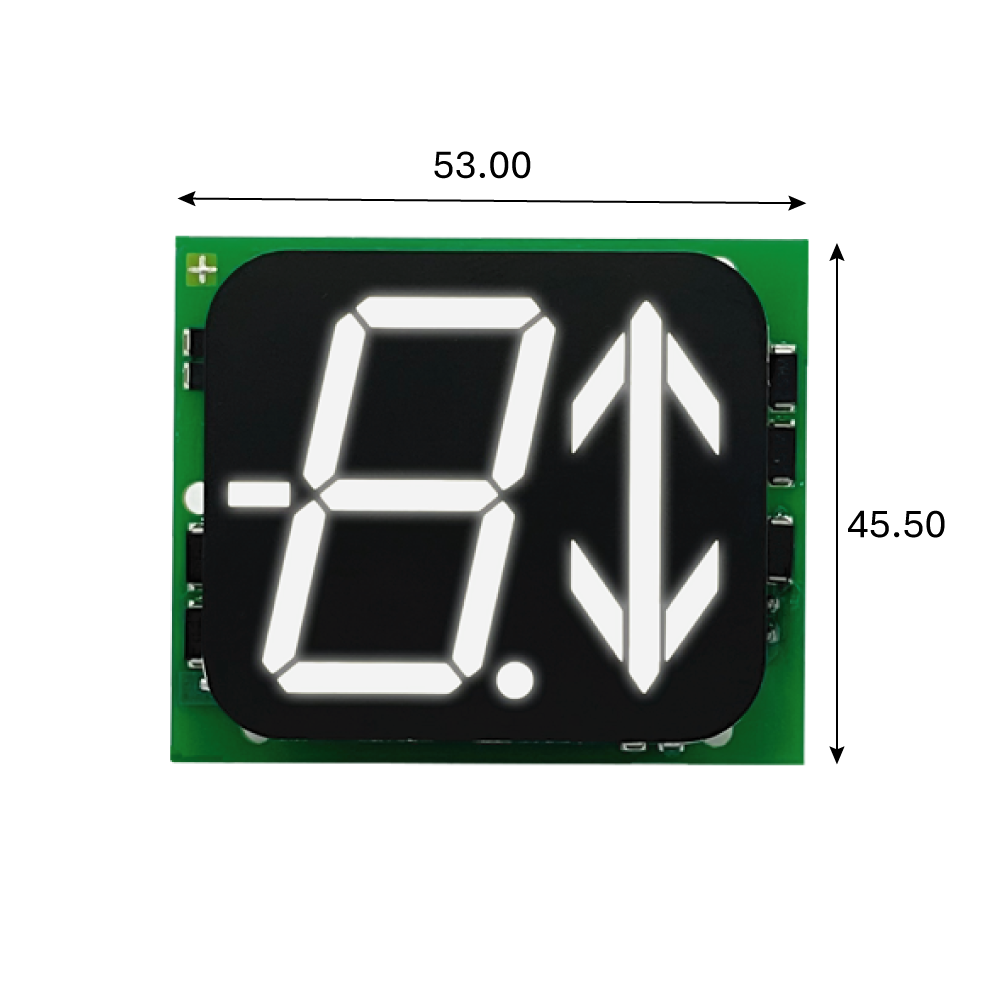

ITAD6359 1.0Inch, is one of the most common solution of 7-Segment Displays for the COPs and LOPs.
Notes
ITAD6359 1.0Inch, is one of the most common solution of 7-Segment Displays for the COPs and LOPs. Ideal for every new installation and every modernization project. ITAD6359 combined with ITAB5858 the box offering effortless installation. On the ITAD6359 we can select the Starting Floor by creating the correct combination on the DIP Switch which can be find on the back side of the PCB. On the same way we can choose the existance of mezzanine floor or not.
Simple and Excellent
| Code | ITAD6359 |
|---|---|
| Mechanical | |
| Dimensions | Techical Folder |
| Electrical | |
| Power Supply | 12–24 V AC/DC |
| Inputs | ABCD, One wire per floor |
| Other | |
| Indication | -3 -> 9 Floor Position, Moving Direction Arrows |

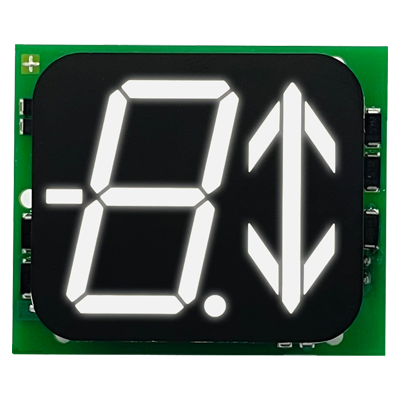

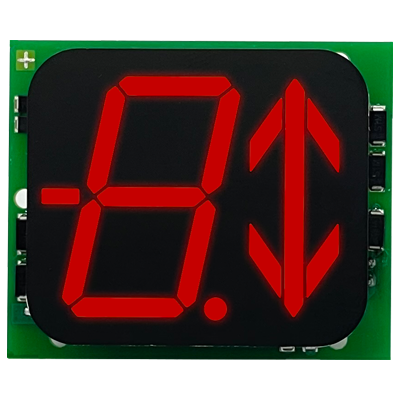

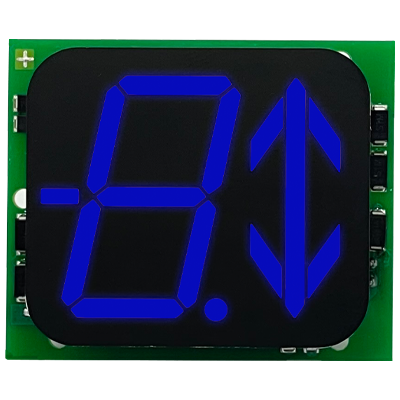

| Lighting Eming Color | Blue, Red, White |
| Max Number of Floors | 14 |
Documents
No manual yet, ask us.
