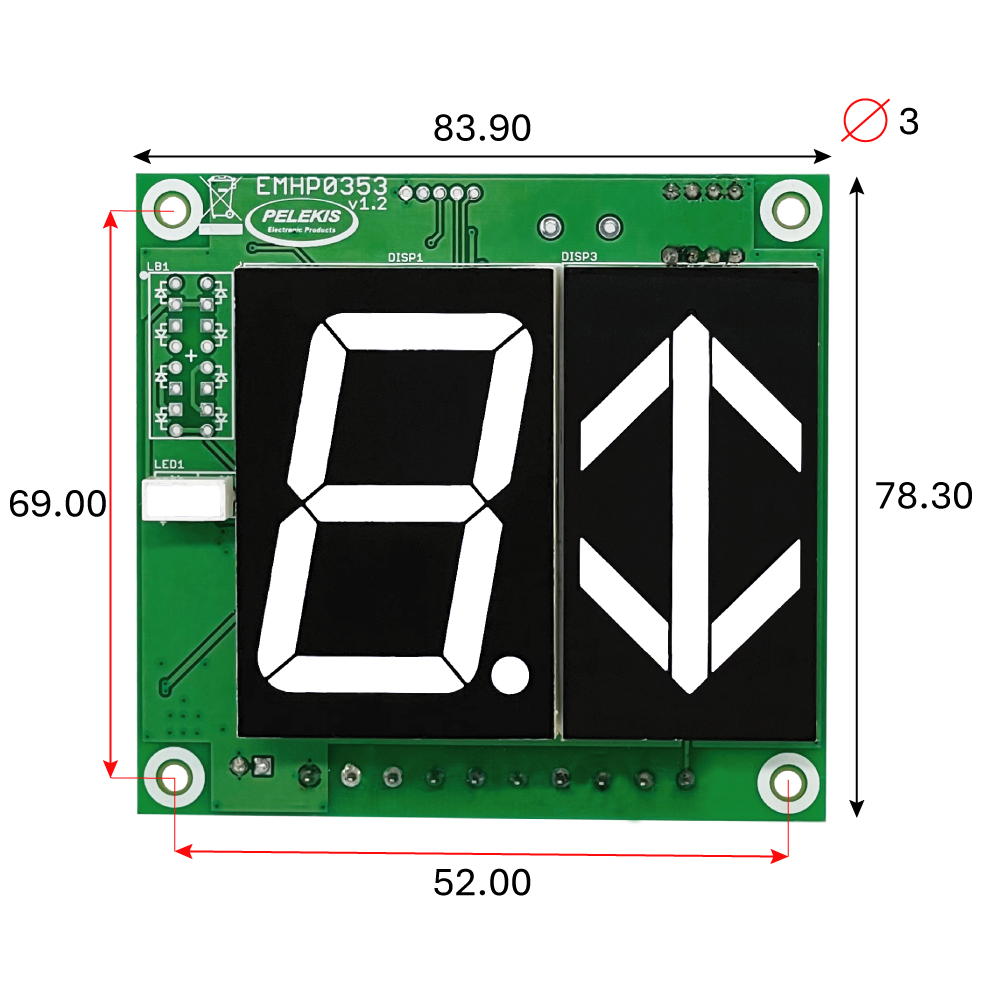

EMHD0353 – Display + Arrows ABCD Indication for COPs
EMHD0353, known as 54mm, 1,8′ Inch, is one of the best solution of 7-Segment Displays for the COPs. Ideal for every new installation and every modernization project. On the EMHD0353 we can select the Starting Floor by creating the correct combination on the DIP Switch which can be find on the back side of the PCB. On the same way we can choose the existance of mezzanine floor or not. It is able to indicate audiovisual indication for Overload with Display and Buzzer.
Simple and Excellent.
| Model | INTD6381 |
|---|---|
| Power Supply | 12-24V AC/DC |
| Indication | -3 -> 9 Floor Position, Moving Direction Arrows, Overload |
| Inputs | ABCD, One wire per floor |
| Lighting Eming Color | Blue, Red, White |
| Max Number of Floors | 14 |
| Dimensions | Techical Folder |
