Card Reader Access Control System with NFC with 2Relay
Enhance your building’s elevator security and convenience with the INTD1010 system, featuring advanced lift control through NFC technology-based cards. Revolutionize access control across multiple floors, empowering passengers with seamless control over cabin buttons using NFC-enabled cards. Each user can access multiple floors with their card.
Additionally, the system offers the flexibility to revoke access for specific users without the need for their physical card, streamlining administrative processes and enhancing overall security measures.
Illustrating its versatility, consider this scenario: one user enjoys access to floors 3, 4, and 5, another to floors 2 and 3, while yet another is granted access to all floors, with another restricted solely to floor 8. Such precise configurations are effortlessly achievable with this device.
The system consists of:
- The NFC Card Reader, a pivotal component of the system, is responsible for seamlessly reading the NFC cards and activating the corresponding buttons on the elevator button panel. This intuitive functionality enhances user interaction with the elevator, promoting efficiency and ease of use.

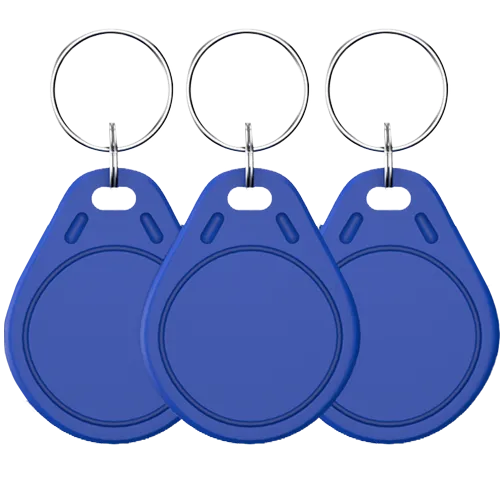

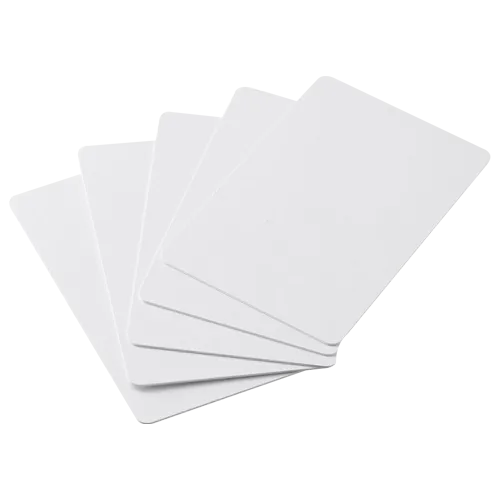

- NFC Cards
- User Cards: These cards grant access to specific floors, allowing users to seamlessly navigate through the building with ease.
- Admin Cards: Designed for administrators, these cards enable the programming of the INTD1010 system with active user profiles. Admins have the flexibility to manage user access and permissions efficiently, ensuring optimal security protocols are upheld at all times.
| Model | INTD1010/E/2R |
|---|---|
| Power Supply | 12-24V AC/DC |
| Number of Outputs | 2 |
| Administration Cards | 4Kb |
| User Cards | 125 Bytes |
| Maximum User Cards | 150 Users |
| Case Material | Stainless Steel |
| Mount Type | Surface Mount |
| Dimensions | 80.7 x 70.2 x 42 mm (H x W x D) |
