Car Lift LED Lighting Autonomy System for Main and Emergency

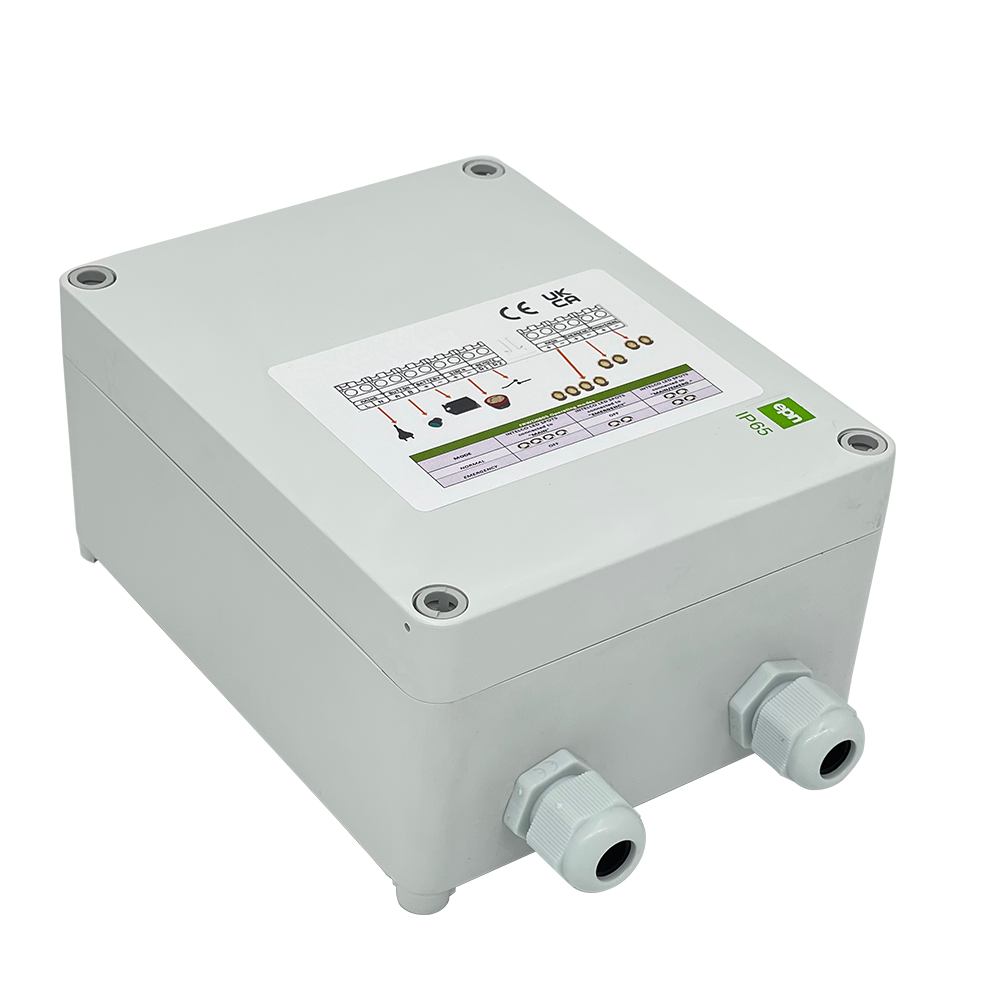

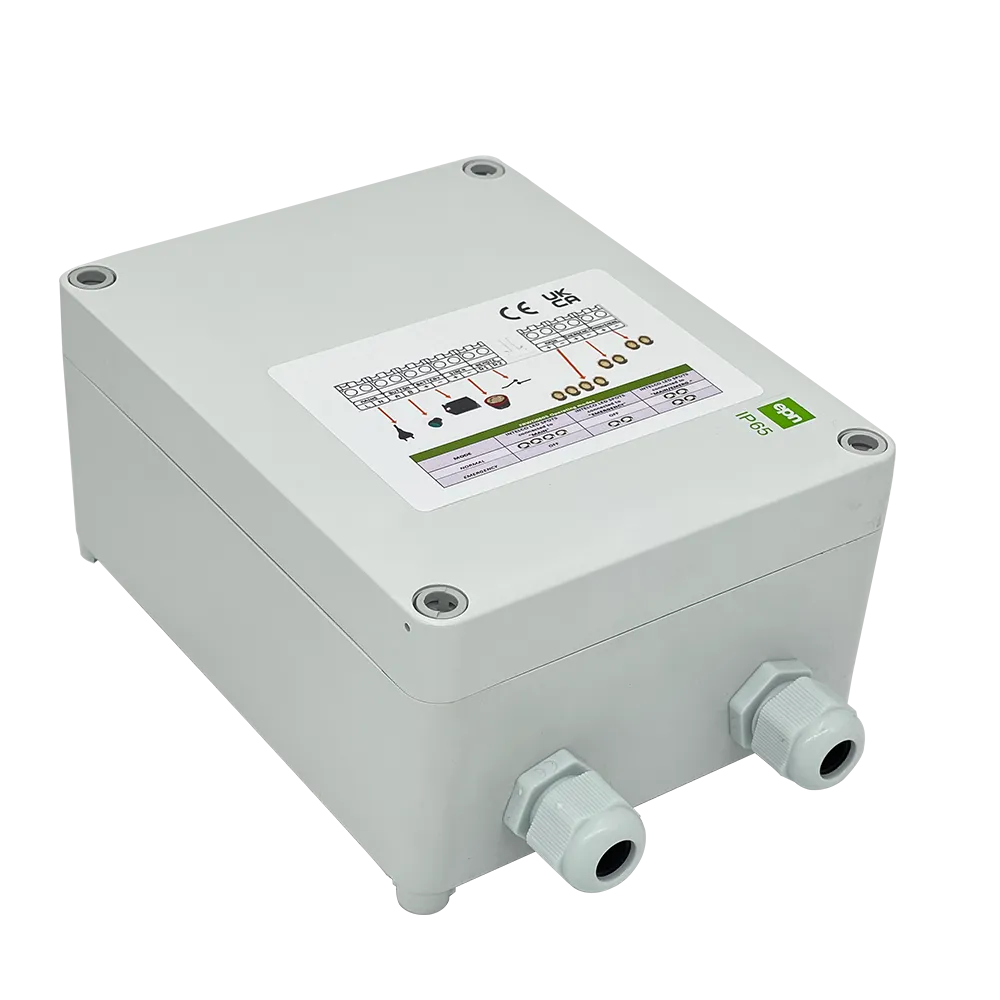

The device FRWD0805 is designed to replace the conventional light bulbs in the elevator cab with lighting technology LED. The device is equipped with Switching power supply (SMPS), for supercharging the protection circuits, fast switching to battery operation in case of power loss from device, intelligent battery recharging system, closed-12V lead battery, Dimmer on the economic operation of the device with a programmable time delay and two different operating modes. Finally, the device has a continuous monitoring of battery status system.

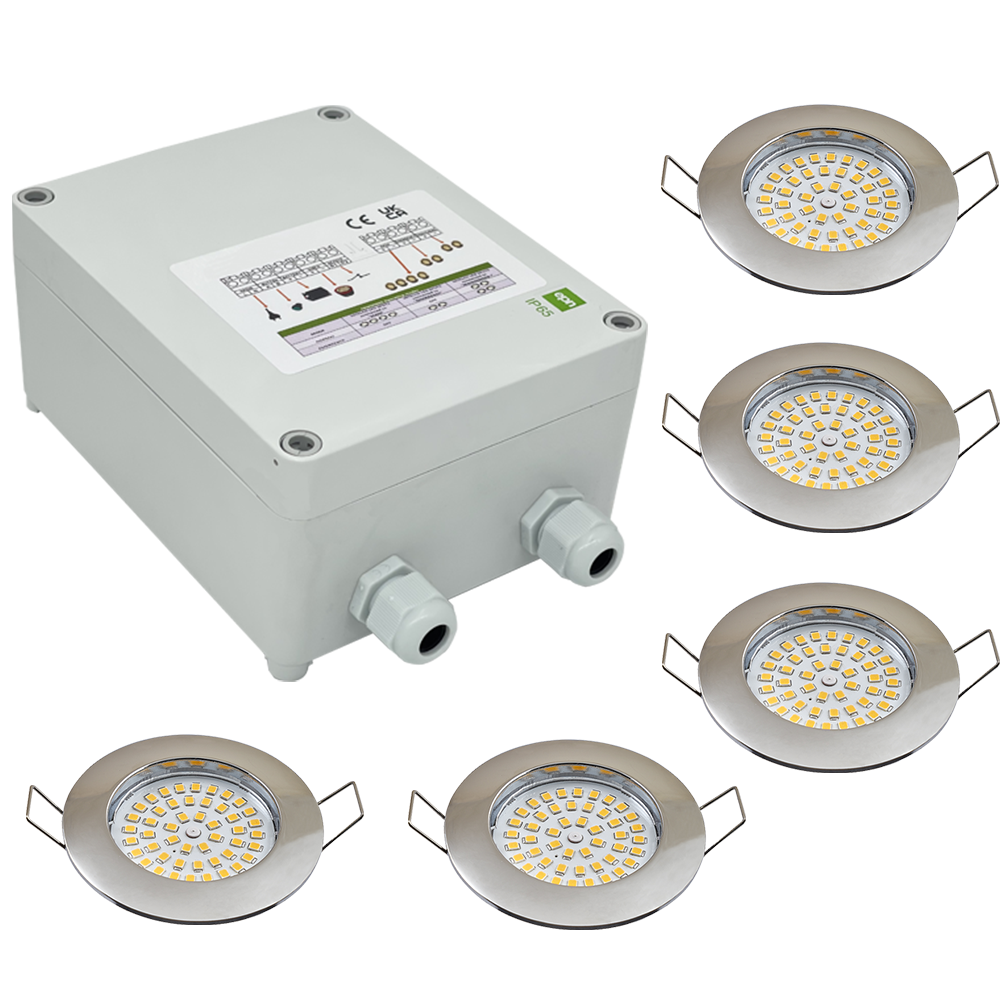

- Up to 6 Pelekis LED spot driving ability.
- Brightness adjustment in normal mode and economy mode(ECO).
- Battery 12V / 1,3 Ah for security system.
- Smart battery charging system.
- Up to 3 hours of autonomy in 2 LED spots.
- Ability 10-70 minute delay between the 2 functions.
- DC output protection for cases of excessive voltage or current.
- AC input protection for cases of excessive voltages and current.
| Model | FRWD0805 |
|---|---|
| Power Supply | 230 VAC |
| Output Voltage | 12 Volt |
| Installation Place | Above the Car Lift |

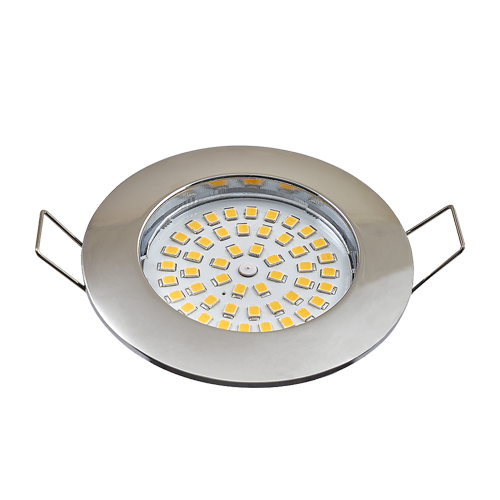

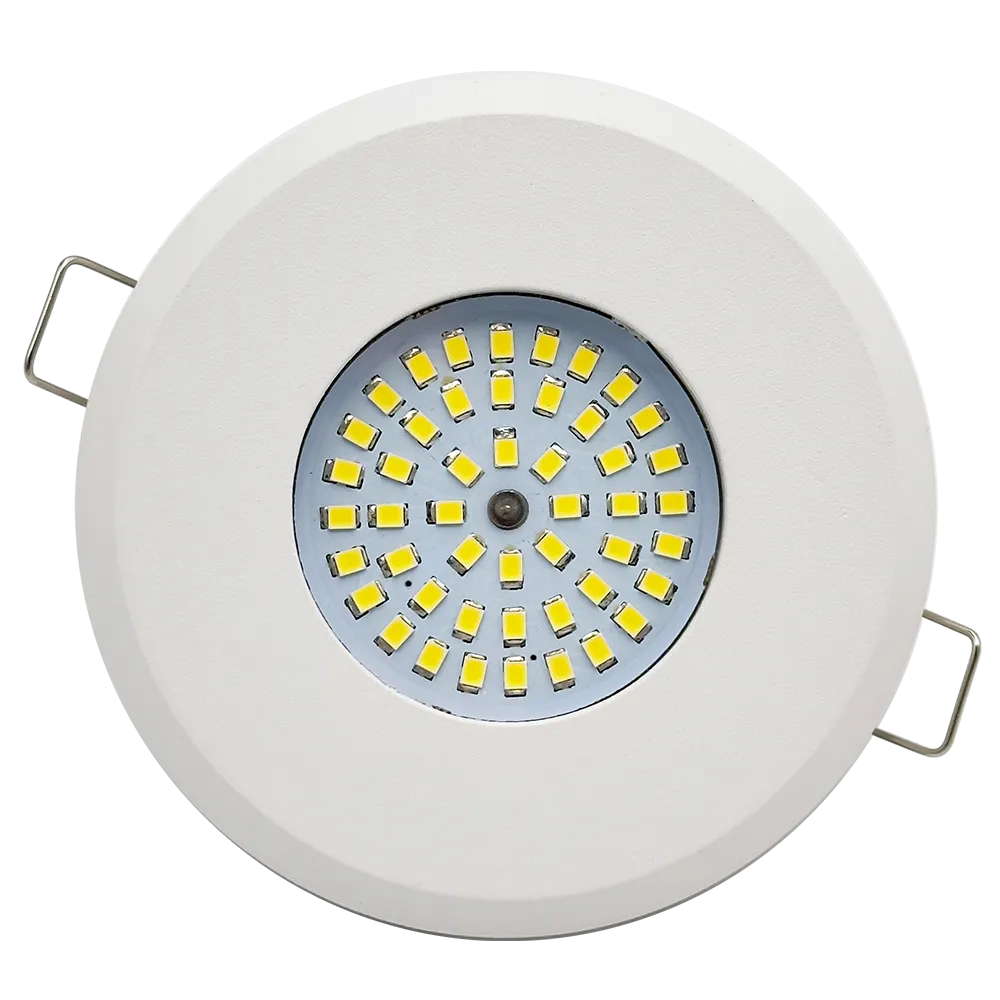

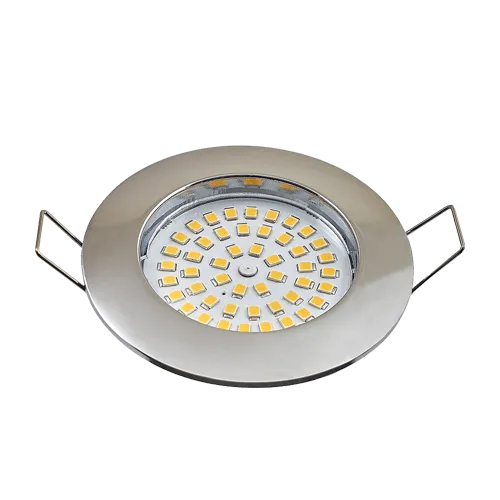

| LED Spot Supported | Pelekis SPOT 12V – (Every design) |
| Battery | Yes |
| Battery Type | SLA 12V/1.2Ah |
| Autonomy Backup | 3 Hours with 2 Pelekis Spots connected in Emergency Channel or Main/Emergency Channel |
| Outputs | Leading up to 8 Pelekis Spots in Main Channel (AC is Live) |
| Output Terminals (3x Doubles) | Output Main Lighting Terminal – The connected Pelekis Spots in this Terminals operate ONLY when AC is ON. *In PRO Version there is terminal for connecting Signal (Interupted Power) which triggers the Lighting to Dim in the desired (adjustable) brightness. |
| Connection | Prewiring Cables with Connectors ATX (Automotive) – FRWD090x |
| Operation Temperature | 0 – 80°C |
| Dimensions | 175 x 135 x 85 (H x W x D) |
| Weight w/ Battery | 350g |
