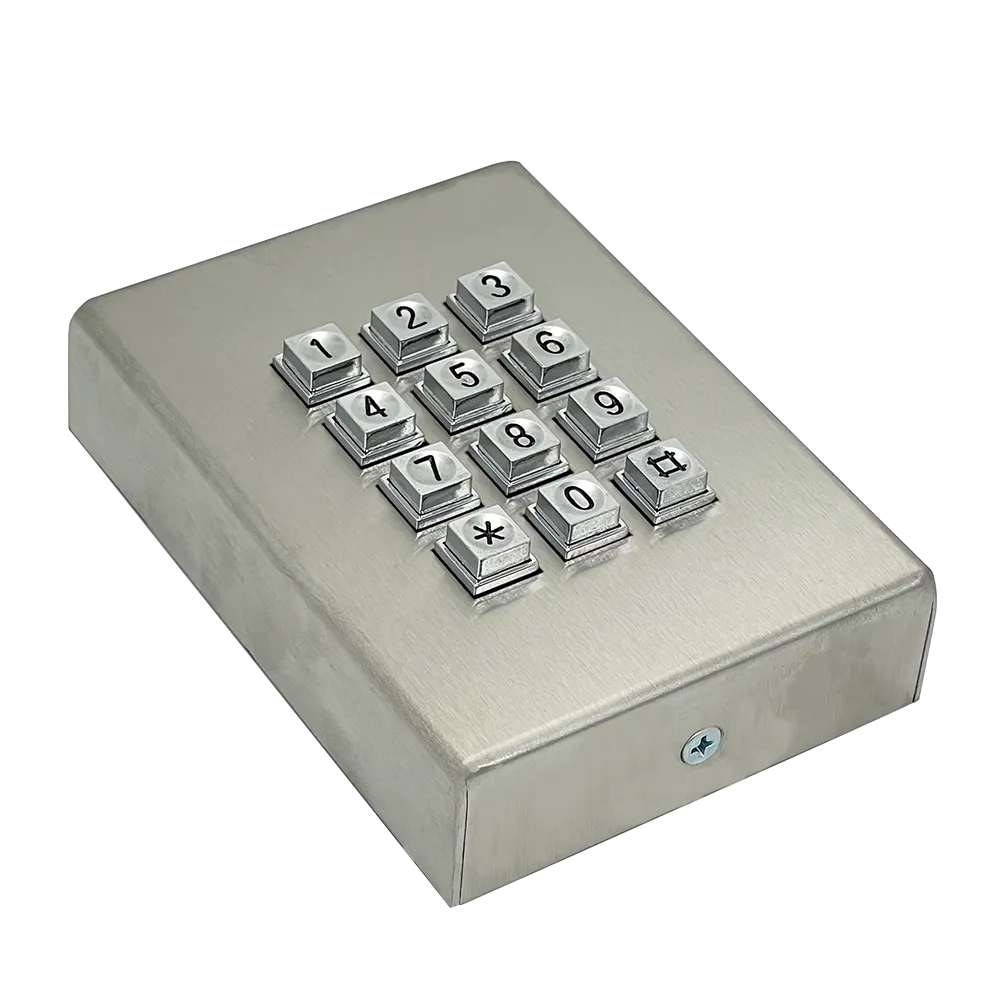

Surface Mounted Keylock with 4Relays

Surface Mounted Keylock with 4Relays

The dial keypad INTD1001 with Surface Mount INOX Structure, with its multitude of different functions which are integrated in the program, can be used in elevators for calls, alarm systems, for entrance password, even as phone keypad combined with the emergency phone when passengers want to dial their desired telephone numbers.

Illustrating its versatility, consider this scenario: one user enjoys access to floors 3, 4, and 5, another to floors 2 and 3, while yet another is granted access to all floors, with another restricted solely to floor 8. Such precise configurations are effortlessly achievable with this device.

  • 4 Relays on board Relays acting like simple buttons.
  • 3–Lever Security control of device.
  • Security 3 digit User password for each relay.
  • Time lock / unlock delay for each relay.
  • Latch mode supported for each relay.
  • False password “Detect and Lock” function.
  • Surface Mount INOX Structure

Model

INTD1001/E/4R

Power Supply

12-24V AC/DC

Number of Outputs

4

Security Levels

User Password
Admin Password
Supervisor Password

Password Length

4 digits

Password

Different Password for every Relay

Keyboard Material

Metal Chrome

Case Material

Stainless Steel

Dimensions

80.7 x 70.2 x 42 mm (H x W x D)

Weight

255g
